Product Overview
Weld On Hinges are designed for permanent gate installations in rural and farm environments, giving a strong, fixed hinge solution for steel gates.
Material: Steel
Fixing method: Weld-on
Components: Sleeves, pins and hinge sets
Products List

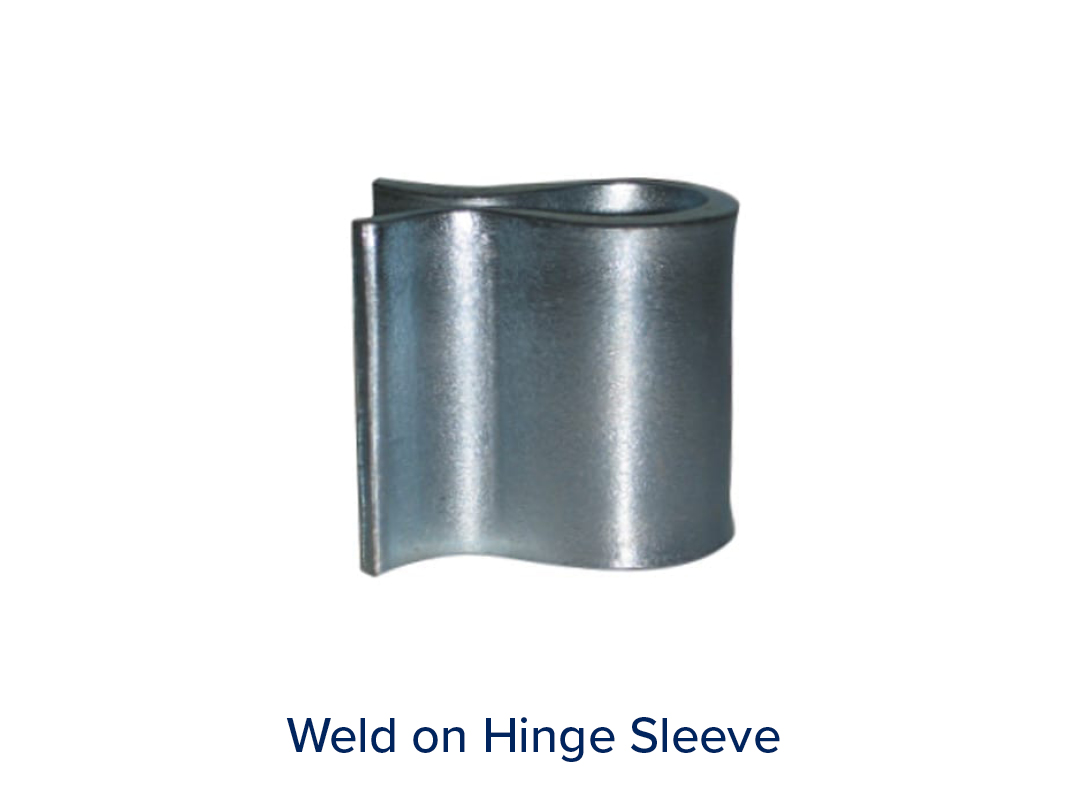

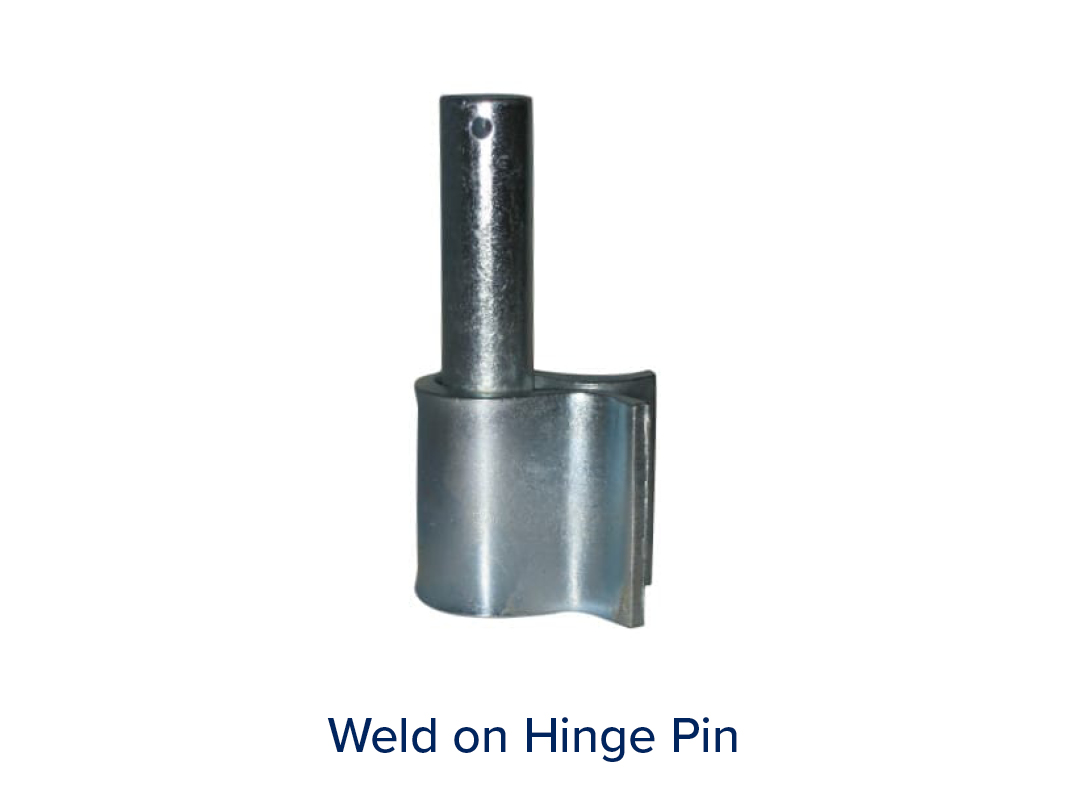

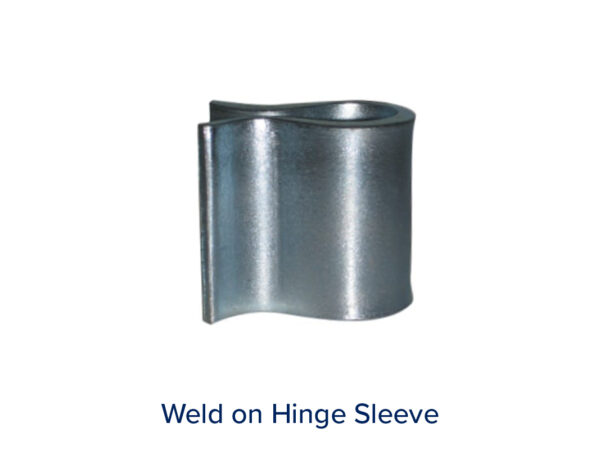

| Individual Sleeves & Pins | ||
|---|---|---|
| Size (mm) | Weight (kg) | |
| Sleeve | Pin | |
| 12 | 0.052 | 0.115 |
| 16 | 0.074 | 0.219 |
| 20 | 0.232 | 0.488 |
| 27 | 0.449 | 1.078 |

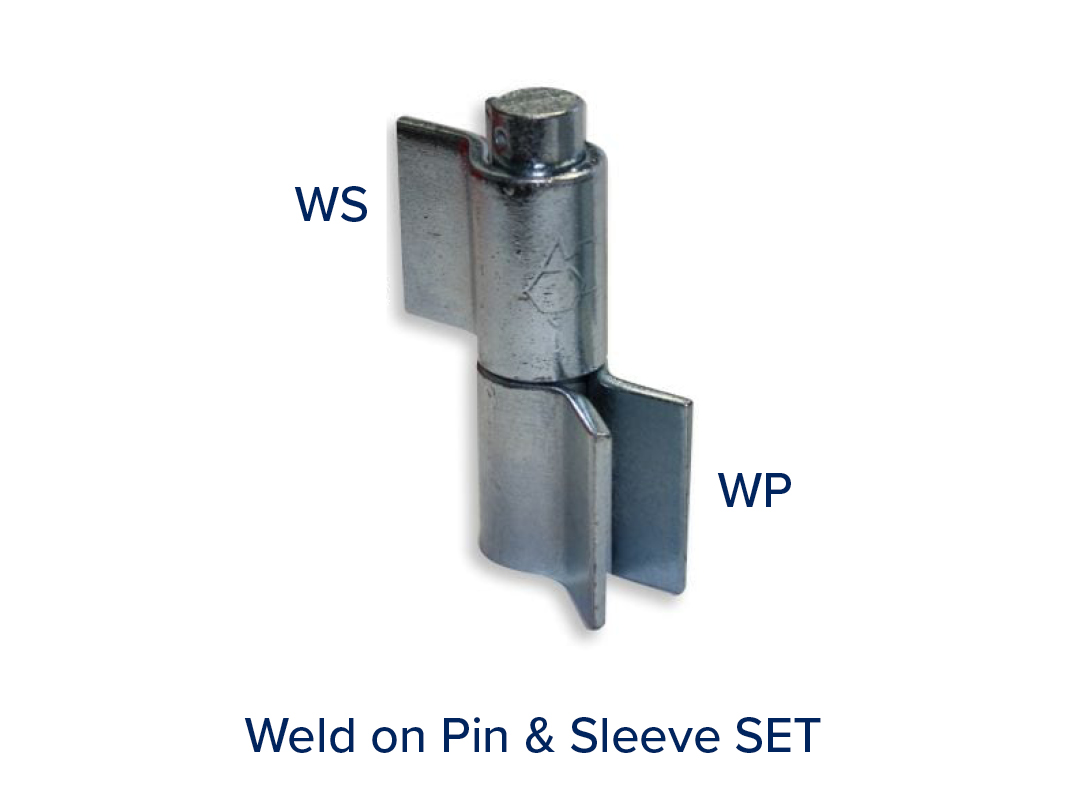

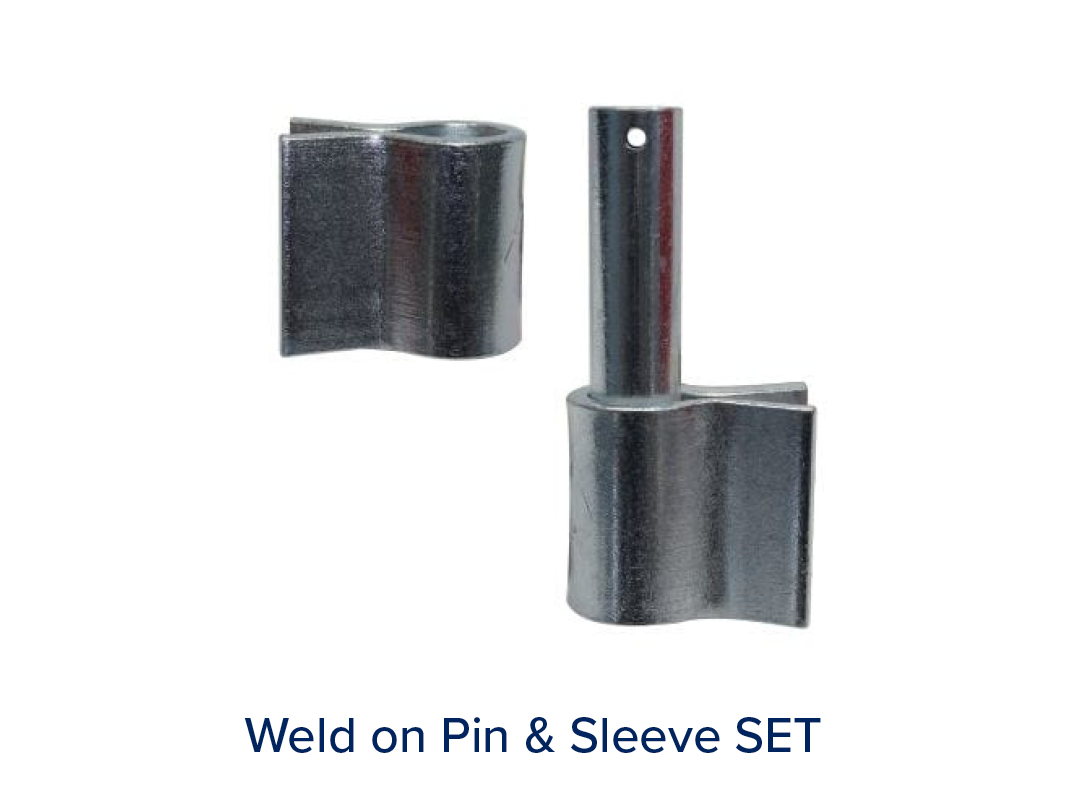

| Complete Hinge Sets & Packs | ||
|---|---|---|
| Size (mm) | Description | Weight (kg) |
| 20 | Set (Pin & Sleeve) | 0.72 |
| 27 | Set (Pin & Sleeve) | 1.523 |
| 16 | Pin, Sleeve & Lynch Pin, Zinc Plated | 0.33 |
| 20 | Pin, Sleeve & Lynch Pin, Zinc Plated | 0.68 |
| 27 | Pin, Sleeve & Lynch Pin, Zinc Plated | 1.5 |

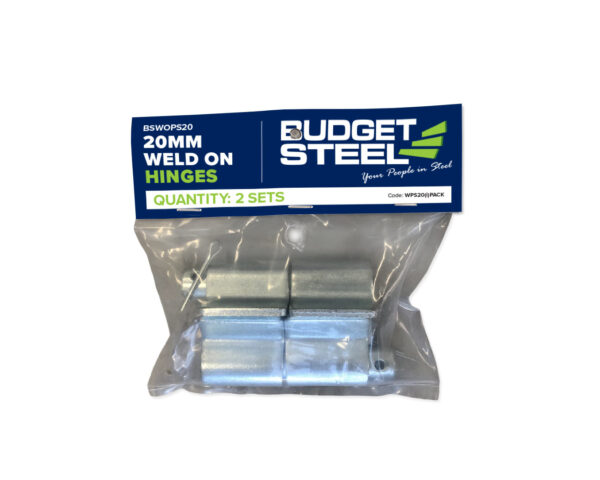

| 16 | 2 Pack Budget Steel (Pin, Sleeve & Lynch Pin), Zinc Plated | 0.65 |
| 20 | 2 Pack Budget Steel (Pin, Sleeve & Lynch Pin), Zinc Plated | 1.37 |
DISCLAIMER
Product information, specifications and images are provided as a general guide only and may vary from those shown. Details and availability can change without notice. Please contact Budget Steel to confirm current stock, pricing and product specifications.
