Product Overview

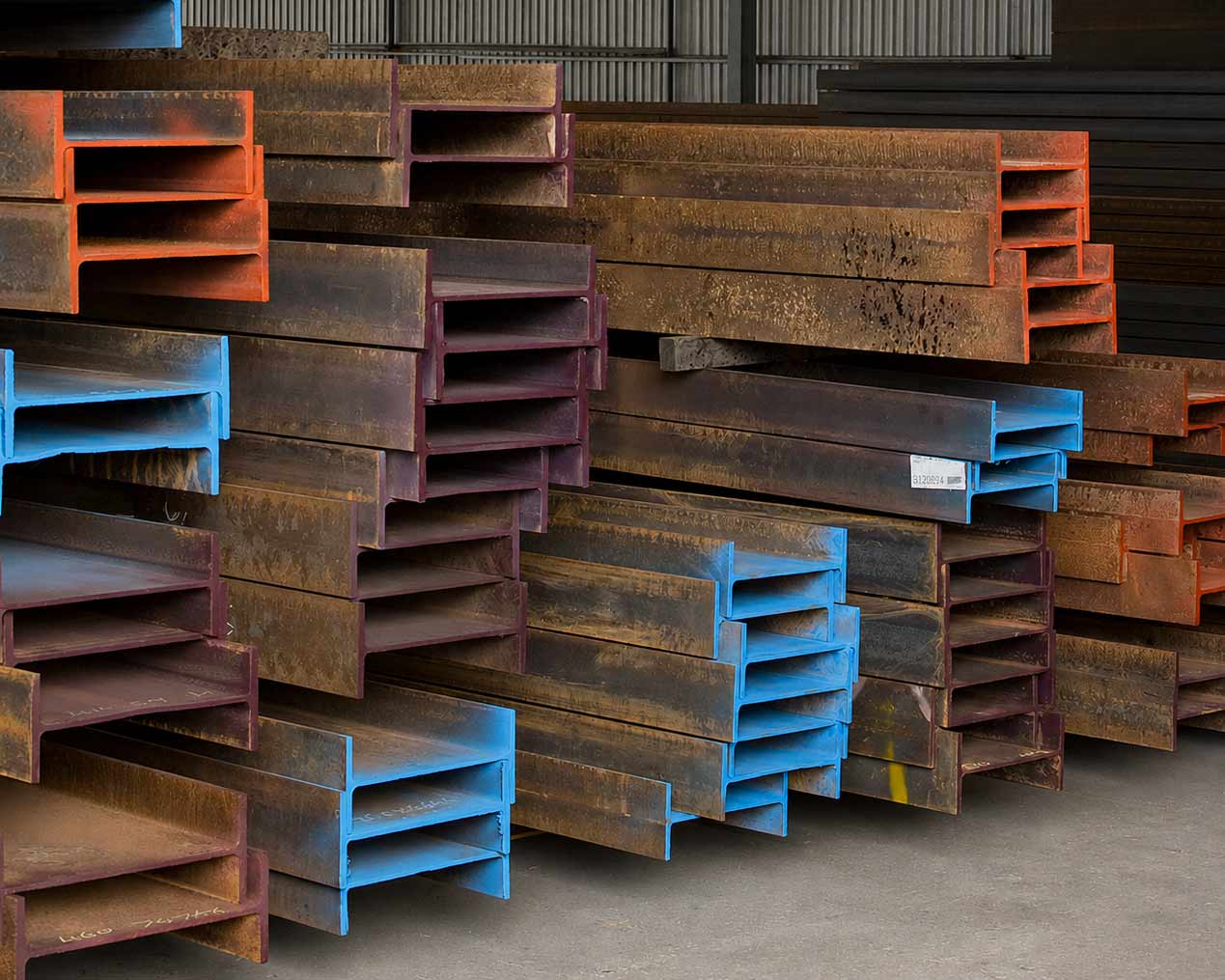

Universal Beam (UB), also called an “I-beam” for its cross-section, is a deep web with narrower flanges, used to support floors and roofs, and common across construction, transport, mining infrastructure, storage and manufacturing.
Sizes follow the standard AS/NZS 3679.1 designation: the number is the section depth in mm, followed by UB, followed by the mass per metre in kg. For example, 150UB18 is a 150mm-deep beam weighing 18kg per metre.
Grade: 300 (Grade 300+ steel, hot-rolled)
Standard: manufactured to AS/NZS 3679.1
Finish: standard mill (black steel)
Note: Non-standard sizes and lengths available on request; minimum order quantities (MOQs) apply
Products List
DesignationFlange Width (mm)Available LengthsMass (kg/m)
150UB1475.0Lineal Metre14.0
9000mm14.0
12000mm14.0
150UB1875.0Lineal Metre18.0
9000mm18.0
12000mm18.0
180UB16.190.0Lineal Metre16.1
9000mm16.1
12000mm16.1
180UB18.190.0Lineal Metre18.1
9000mm18.1
12000mm18.1
180UB22.290.0Lineal Metre22.2
9000mm22.2
12000mm22.2
200UB18.299.0Lineal Metre18.2
9000mm18.2
12000mm18.2
200UB22.3133.0Lineal Metre22.3
9000mm22.3
12000mm22.3
200UB25.4133.0Lineal Metre25.4
9000mm25.4
12000mm25.4
200UB29.8134.0Lineal Metre29.8
9000mm29.8
12000mm29.8
250UB25.7124.0Lineal Metre25.7
9000mm25.7
12000mm25.7
250UB31.4146.0Lineal Metre31.4
9000mm31.4
12000mm31.4
250UB37.3146.00Lineal Metre37.3
9000mm37.3
12000mm37.3
310UB32.0149.0Lineal Metre32
9000mm32
12000mm32
310UB40.4165.00Lineal Metre40.4
9000mm40.4
12000mm40.4
310UB46.2166.0Lineal Metre46.2
9000mm46.2
12000mm46.2
360UB44.7171.00Lineal Metre44.7
360UB50.7171.0Lineal Metre50.7
360UB56.7172.00Lineal Metre56.7
410UB53.7171.0Lineal Metre53.7
410UB59.7171.00Lineal Metre59.7
460UB67.1172.0Lineal Metre67.1
460UB82.1172.00Lineal Metre82.1
530UB92.4172.0Lineal Metre92.4
610UB101172.00Lineal Metre101
DISCLAIMER

Product information, specifications and images are provided as a general guide only and may vary from those shown. Details and availability can change without notice. Please contact Budget Steel to confirm current stock, pricing and product specifications.
