Product Overview

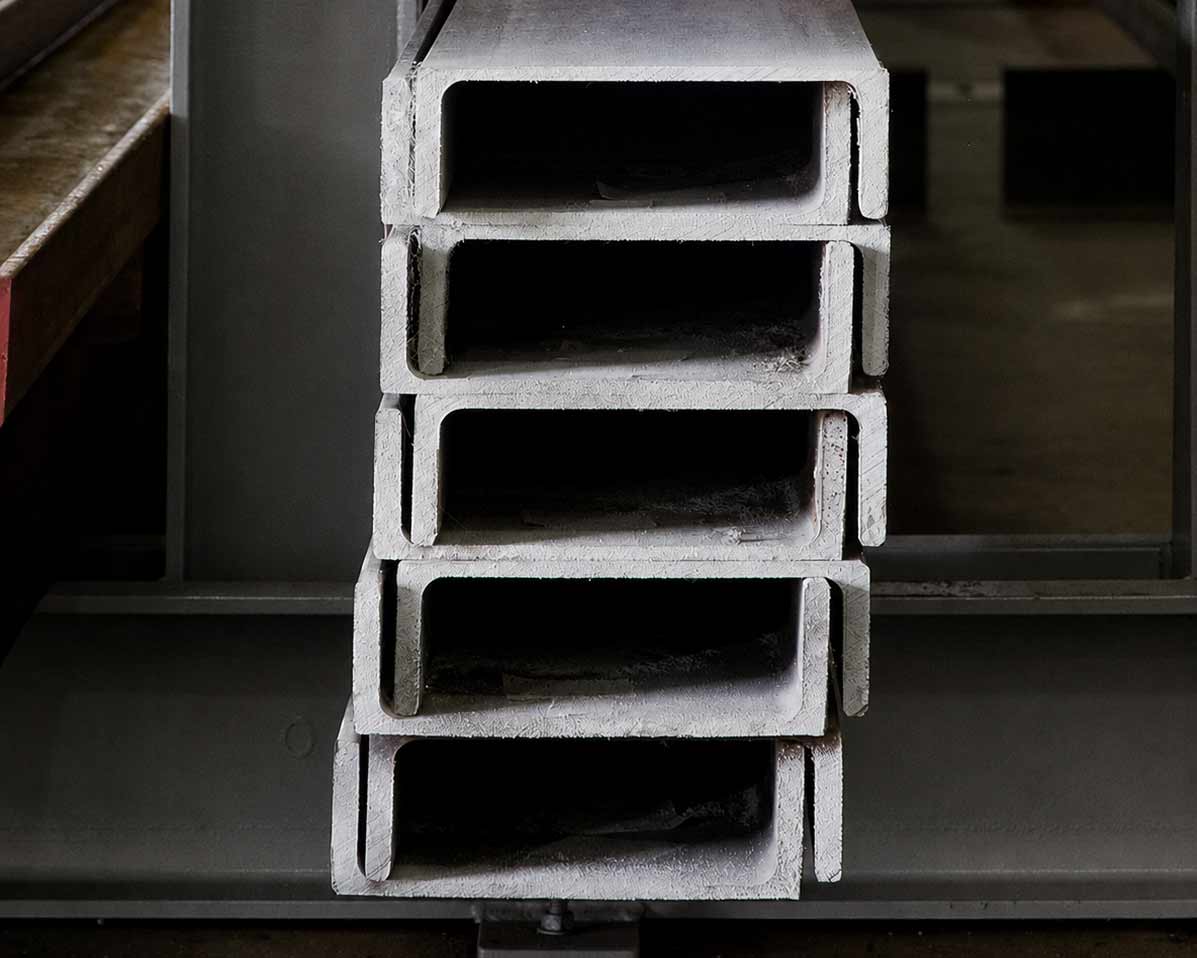

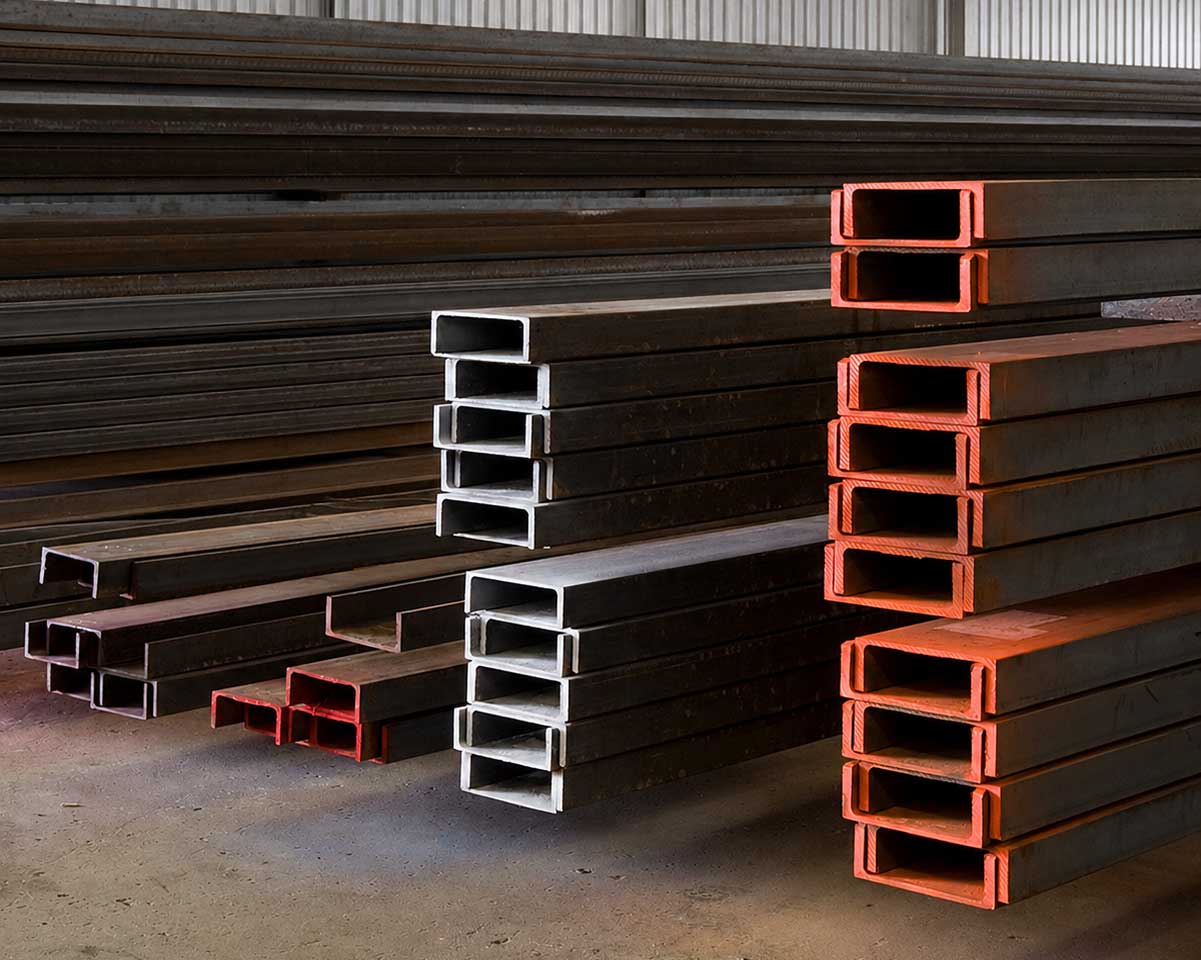

Parallel Flange Channel (PFC) is a hot-rolled steel channel with a flat, parallel-sided flange. Used for frames, braces, floor beams, portal frames, truss support, machinery bases, trailers and general fabrication.
Grade: 300 (Grade 300+ steel, hot-rolled)
Standard: manufactured to AS/NZS 3679.1

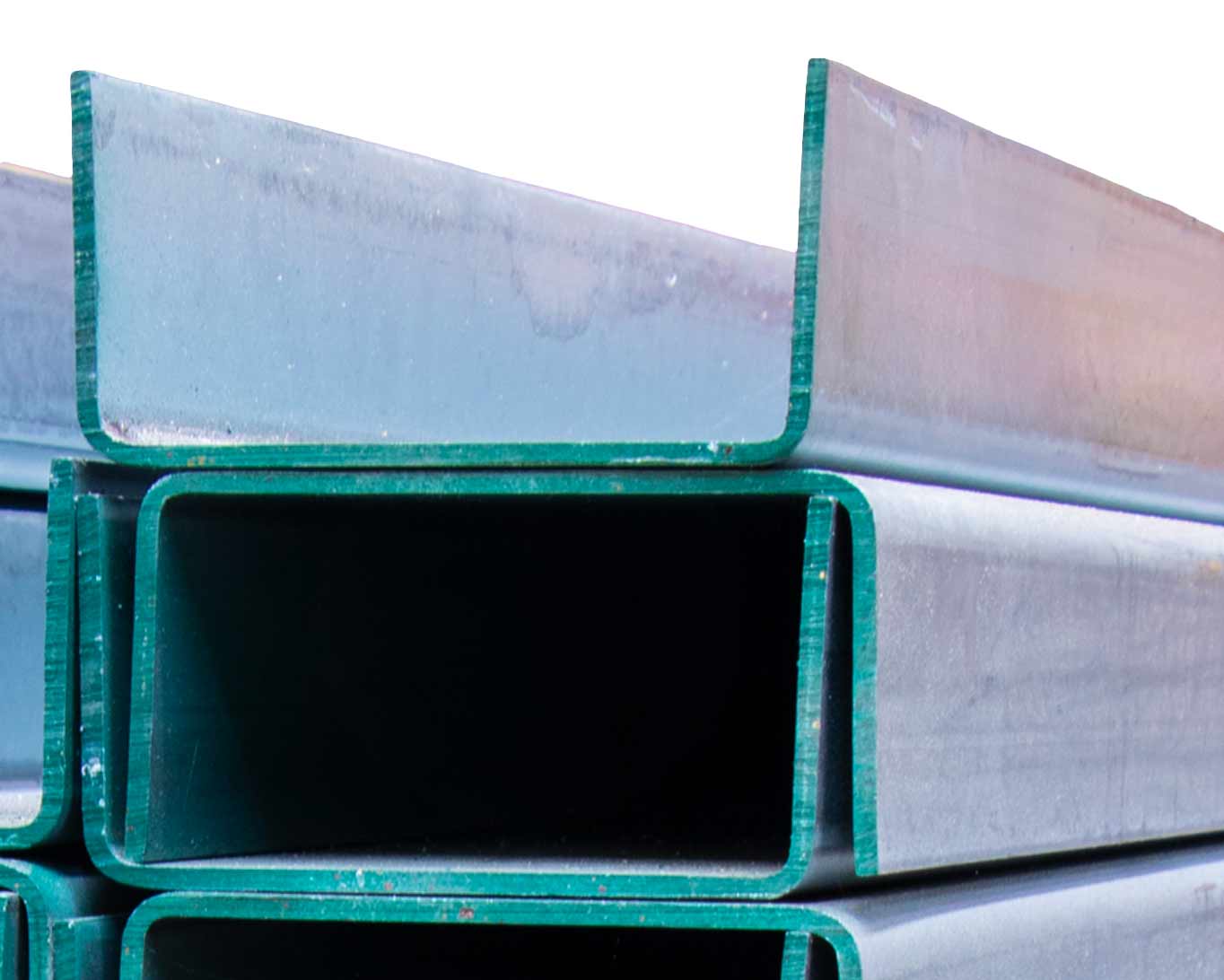

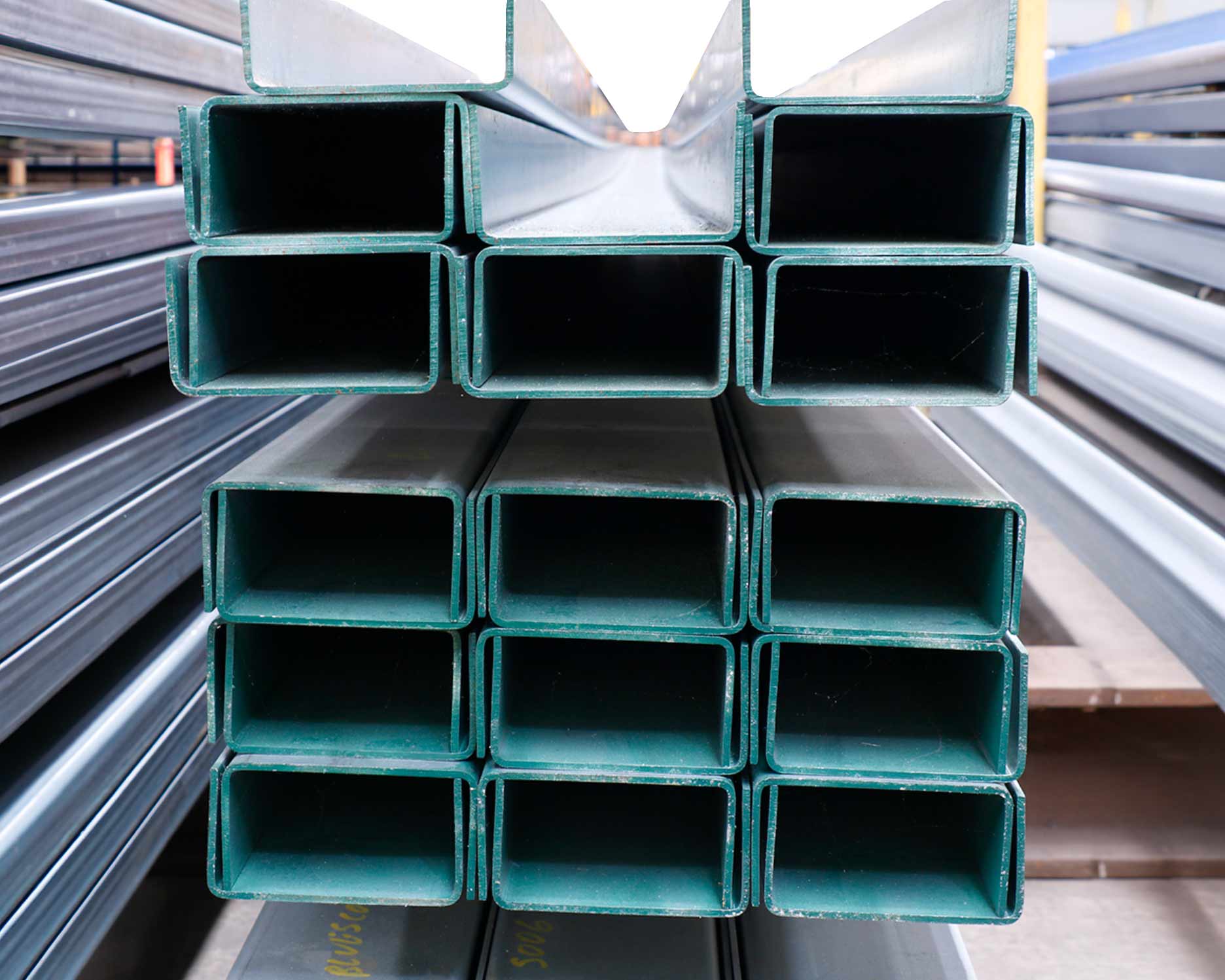

Finish: standard mill (black steel), with hot-dip galvanised (HDG) available on select sizes
Note: Non-standard sizes and lengths available on request; minimum order quantities (MOQs) apply
Products List
| Size (mm) | Available Lengths | Finish | Mass (kg/m) | |
|---|---|---|---|---|
| Standard | Galv. (HDG) | |||
| 75 x 40 | Lineal Metre | ✓ | - | 5.92 |
| 9000mm | ✓ | ✓ | 6.52 | |
| 12000mm | ✓ | - | 5.92 | |
| 100 x 50 | Lineal Metre | ✓ | - | 8.33 |
| 9000mm | ✓ | ✓ | 8.93 | |
| 12000mm | ✓ | - | 8.33 | |
| 125 x 65 | 9000mm | ✓ | - | 11.9 |
| 12000mm | ✓ | - | 11.9 | |
| 150 x 75 | Lineal Metre | ✓ | - | 17.7 |
| 9000mm | ✓ | - | 17.7 | |
| 12000mm | ✓ | - | 17.7 | |
| 180 x 75 | Lineal Metre | ✓ | - | 20.9 |
| 9000mm | ✓ | - | 20.9 | |
| 12000mm | ✓ | - | 20.9 | |
| 200 x 75 | Lineal Metre | ✓ | - | 22.9 |
| 9000mm | ✓ | - | 22.9 | |
| 12000mm | ✓ | - | 22.9 | |
| 15000mm | ✓ | - | 22.9 | |
| 230 x 75 | Lineal Metre | ✓ | - | 25.1 |
| 9000mm | ✓ | - | 25.1 | |
| 12000mm | ✓ | - | 25.1 | |
| 250 x 90 | Lineal Metre | ✓ | - | 35.5 |
| 9000mm | ✓ | - | 35.5 | |
| 12000mm | ✓ | - | 35.5 | |
| 300 x 90 | Lineal Metre | ✓ | - | 40.1 |
| 9000mm | ✓ | - | 40.1 | |
| 12000mm | ✓ | - | 40.1 | |
| 380 x 100 | Lineal Metre | ✓ | - | 55.2 |
DISCLAIMER
Product information, specifications and images are provided as a general guide only and may vary from those shown. Details and availability can change without notice. Please contact Budget Steel to confirm current stock, pricing and product specifications.
