Product Overview

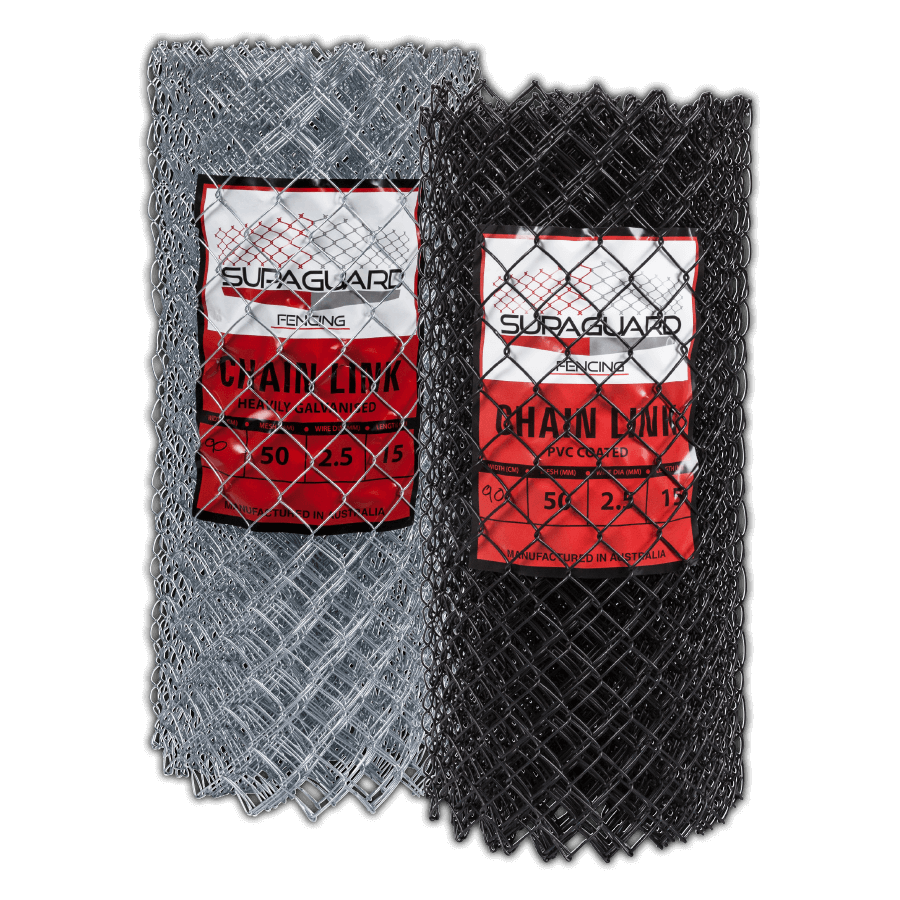

Chainwire Fencing is a woven steel mesh fence in the classic diamond pattern, supplied in rolls ready to install. It suits residential boundaries, pool surrounds, side and backyard fencing, sports courts and general security enclosures.
Product Details
Wire diameter: 2.5mm
Mesh pattern: diamond weave
Finish options: Standard Galvanised or PVC Black
Selvedge options: Knuckle/Knuckle (KK), rounded edge top and bottom, or Knuckle/Barb (KB), rounded bottom edge with a barbed top edge for extra security
Products List
| Height (mm) | Selvedge | Roll Length (m) | Weight (kg) | Finish | |
|---|---|---|---|---|---|
| Standard Galvanised | PVC Black | ||||
| 60mm Diamond (Mesh Size) | |||||
| 900 | KK | 20 | 24 | ✓ | |
| 1200 | KK | 20 | 32 | ✓ | |
| 1800 | KK | 20 | 48 | ✓ | |
| 1800 | KB | 20 | 48 | ✓ | |
| 900 | KK | 15 | 28 | ✓ | |
| 1200 | KK | 15 | 36 | ✓ | |
| 1800 | KK | 15 | 55 | ✓ | |
| 1800 | KB | 15 | 55 | ✓ | |
| 50mm Diamond (Mesh Size) | |||||
| 900 | KK | 20 | 28 | ✓ | |
| 1200 | KK | 20 | 38 | ✓ | |
| 1800 | KK | 20 | 55 | ✓ | |
| 1800 | KB | 20 | 55 | ✓ | |
| 2400 | KK | 10 | 38 | ✓ | |
| 3000 | KK | 10 | 46 | ✓ | |
| 3600 | KK | 10 | 56 | ✓ | |
| 900 | KK | 15 | 25 | ✓ | |
| 1200 | KK | 15 | 33 | ✓ | |
| 1800 | KK | 15 | 50 | ✓ | |
| 1800 | KB | 15 | 50 | ✓ | |
DISCLAIMER
Product information, specifications and images are provided as a general guide only and may vary from those shown. Details and availability can change without notice. Please contact Budget Steel to confirm current stock, pricing and product specifications.
